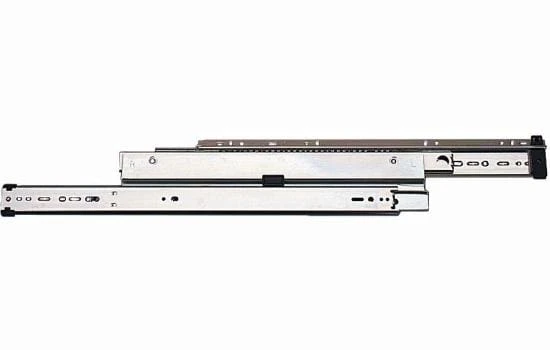

Knape And Vogt 8505 Series 24 Inch Over Travel Side Mount Ball Bearing Drawer Slides With 150 Pound Weight Capacity And Quick Disconnect – Pair Anochrome
Original price was: $40.75.$28.53Current price is: $28.53.
- Multiple payment methods, 100% payment security
- Enjoy top quality items for less
- Top Quality Products
- Safe Payments for a Better Shopping Experience
Features:
- Made to support a maximum weight capacity of 65 pounds
- Sleek design installs on the sides of the drawer
- Full extension slides allow for maximum drawer accessibility
- Easily disconnects with push-in lever
- Intended for use in panel or frameless cabinets
- Includes a Limited Lifetime Warranty
Product Technologies:
- Anti-Rebound: Also known as slide detent, Anti-Rebound acts like a brake: ensuring your drawers do not roll back open when closed with too much force.
Specifications:
- Slide Length: 24″ (610 mm)
- Material: Steel
- Extension Type: Over Travel
- Anti-Rebound/Detent: Yes
- Slide Type: Ball Bearing
- Weight Capacity: 150 lbs
- Maximum Drawer Width: 30″
- Mounting hardware not included
Product Variations:
- 8505B 12: 12 Inch Over Travel Ball Bearing Slides
- 8505B 14: 14 Inch Over Travel Ball Bearing Slides
- 8505B 16: 16 Inch Over Travel Ball Bearing Slides
- 8505B 18: 18 Inch Over Travel Ball Bearing Slides
- 8505B 20: 20 Inch Over Travel Ball Bearing Slides
- 8505B 22: 22 Inch Over Travel Ball Bearing Slides
- 8505B 24 (This Model): 24 Inch Over Travel Ball Bearing Slides
- 8505B 26: 26 Inch Over Travel Ball Bearing Slides
- 8505B 28: 28 Inch Over Travel Ball Bearing Slides
- 8505B 30: 30 Inch Over Travel Ball Bearing Slides
Dimensions and Measurements
Height
3.79 in.
Height mm
96 mm
Length
24 in.
Max Capacity (Pounds)
150 lbs.
Maximum Drawer Width
30 in.
Minimum Cabinet Depth
24 in.
Minimum Clearance
0.5 in.
Quantity
2
Width
0.5 in.
Width mm
13 mm
Characteristics and Features
Detent
Yes
Disconnect Style
Lever
Extension Type
Over Travel
Installation Type
Side Mount
Material
Steel
Slide Type
Ball Bearing
Warranty and Product Information
Approved for Commercial Use
No, Yes
Collection
8505
Manufacturer Warranty
Limited Lifetime
Series
8505
| Finish | Anochrome |
|---|
