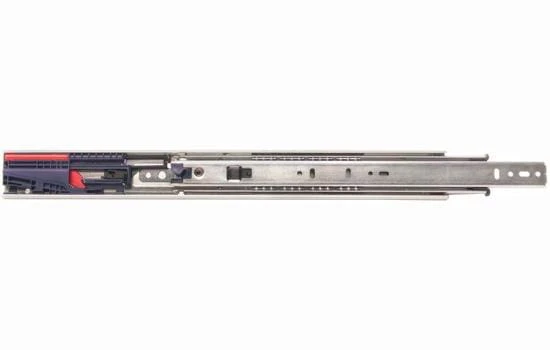

Knape And Vogt 8450FM Series 20 Inch Full Extension Side Mount Ball Bearing Drawer Slide With 100 Lbs. Weight Capacity, Self Close And Soft Close – Pair Anochrome

Features:

• Designed to support up to 100 pounds of weight
• Mounts to the side of the drawer
• Provides easy access to the drawer with full extension slides
• Lever disconnect allows easy removal of entire drawer system
• Slides can be installed in either panel (frameless) or face frame cabinets
• Includes a limited lifetime manufacturer warranty

Product Technologies:

• Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.

• Soft Close: Whether large or small, heavy or light, soft closing action keeps drawers from slamming closed. It adapts to various closing speeds and features overload safety to protect the system from damage over time.

Specifications:

• BHMA Certification: Grade 1
• Recommended Drawer Length: 20-1/2″
• Slide Length: 20″
• Extension Type: Full Extension
• Slide Type: Ball Bearing
• Weight Capacity: 100 lbs
• Material: Steel
• Cabinet Type: Face Frame, Panel
• Quantity: 2
• Mounting hardware not included

Product Variations:

• 8450FMB 12: 12 Inch Drawer Slide
• 8450FMB 14: 14 Inch Drawer Slide
• 8450FMB 16: 16 Inch Drawer Slide
• 8450FMB 18: 18 Inch Drawer Slide
• 8450FMB 20 (This Model): 20 Inch Drawer Slide
• 8450FMB 22: 22 Inch Drawer Slide
• 8450FMB 24: 24 Inch Drawer Slide
• 8450FMB 26: 26 Inch Drawer Slide
• 8450FMB 28: 28 Inch Drawer Slide
