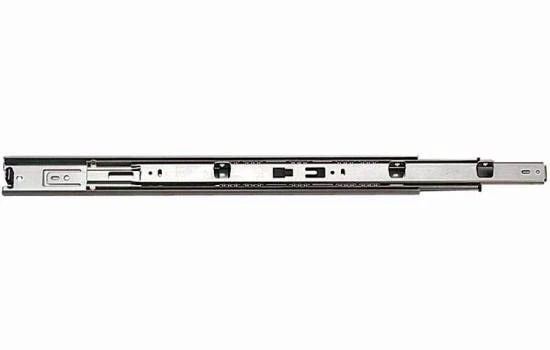

Knape And Vogt 8407 Series 18 Inch Over Travel Side Mount Ball Bearing Drawer Slide With 100 Lbs. Weight Capacity – Pair Anochrome
Original price was: $24.09.$16.86Current price is: $16.86.
- Multiple payment methods, 100% payment security
- Enjoy top quality items for less
- Top Quality Products
- Safe Payments for a Better Shopping Experience
Features:
- Designed to support up to 100 pounds of weight
- Mounts to the side of the drawer
- Provides maximum access to the drawer with overtravel slides
- Lever disconnect allows easy removal of entire drawer system
- Slides can be installed in either panel (frameless) or face frame cabinets
- Includes a limited lifetime manufacturer warranty
Product Technologies:
- Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
- BHMA Certification: Grade 1
- Recommended Drawer Length: 18-1/2″
- Slide Length: 18″
- Extension: Type: Over Travel
- Slide Type: Ball Bearing
- Weight Capacity: 100 lbs
- Material: Steel
- Cabinet Type: Face Frame, Panel
- Quantity: 2
- Mounting hardware not included
Product Variations:
- 8407B 14: 14 Inch Drawer Slide
- 8407B 16: 16 Inch Drawer Slide
- 8407B 18 (This Model): 18 Inch Drawer Slide
- 8407B 20: 20 Inch Drawer Slide
- 8407B 22: 22 Inch Drawer Slide
Dimensions and Measurements
Drawer Length
18.5 in.
Height
1.79 in.
Height mm
46 mm
Length
18 in.
Max Capacity (Pounds)
100 lbs.
Maximum Drawer Width
24 in.
Minimum Cabinet Depth
18 in.
Minimum Clearance
0.5 in.
Nominal Length
18 in.
Quantity
2
Width
0.5 in.
Width mm
13 mm
Characteristics and Features
Adjustable
No
Cabinet Type
Face Frame, Panel (Frameless)
Detent
Yes
Disconnect Style
Lever
Extension Type
Over Travel
Function
Drawer Slide
Installation Type
Side Mount
Material
Steel
Mounting Type
Side Mount
Push to Open
No
Self Closing
No
Slide Type
Ball Bearing
Soft Close
No
Warranty and Product Information
Approved for Commercial Use
No, Yes
BHMA Certification
Grade 1
Collection
8407
Manufacturer Warranty
Limited Lifetime
Series
8407
| Finish | Anochrome |
|---|
