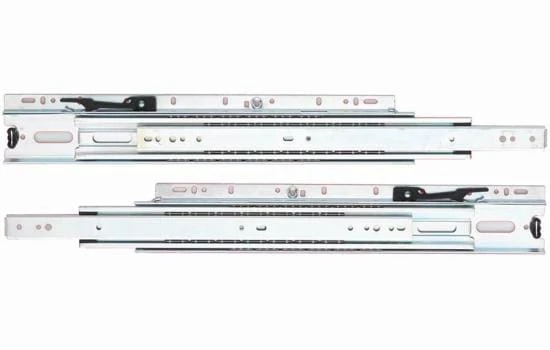

Knape And Vogt 6505 Series 22 Inch Over Travel Side Mount Ball Bearing Drawer Slide With 125 Lbs. Weight Capacity – Pair Zinc
Original price was: $27.87.$19.51Current price is: $19.51.
- Multiple payment methods, 100% payment security
- Enjoy top quality items for less
- Top Quality Products
- Safe Payments for a Better Shopping Experience
Features:
- Designed to support up to 125 pounds of weight
- Mounts to the side of the drawer
- Provides maximum access to the drawer with overtravel slides
- Rail disconnect allows easy removal of drawer
- Slides can be installed in either panel (frameless) or face frame cabinets
- Includes a limited lifetime manufacturer warranty
Product Technologies:
- Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
- BHMA Certification: Grade 1
- Recommended Drawer Length: 22-1/2″
- Slide Length: 22″
- Extension: Type: Over Travel
- Slide Type: Ball Bearing
- Weight Capacity: 125 lbs
- Material: Steel
- Cabinet Type: Face Frame, Panel
- Quantity: 2
- Mounting hardware not included
Product Variations:
- 6505B 12: 12 Inch Drawer Slide
- 6505B 14: 14 Inch Drawer Slide
- 6505B 16: 16 Inch Drawer Slide
- 6505B 18: 18 Inch Drawer Slide
- 6505B 20: 20 Inch Drawer Slide
- 6505B 22 (This Model): 22 Inch Drawer Slide
- 6505B 24: 24 Inch Drawer Slide
- 6505B 26: 26 Inch Drawer Slide
- 6505B 28: 28 Inch Drawer Slide
Dimensions and Measurements
Drawer Length
22.5 in.
Height
2.58 in.
Height mm
66 mm
Length
22 in.
Max Capacity (Pounds)
125 lbs.
Maximum Drawer Width
30 in.
Minimum Cabinet Depth
22 in.
Minimum Clearance
0.5 in.
Nominal Length
22 in.
Quantity
2
Width
0.5 in.
Width mm
13 mm
Characteristics and Features
Adjustable
No
Cabinet Type
Face Frame, Panel (Frameless)
Detent
Yes
Disconnect Style
Rail
Extension Type
Over Travel
Function
Drawer Slide
Installation Type
Side Mount
Material
Steel
Mounting Type
Side Mount
Push to Open
No
Self Closing
No
Slide Type
Ball Bearing
Soft Close
No
Warranty and Product Information
Approved for Commercial Use
No, Yes
BHMA Certification
Grade 1
Collection
6505
Manufacturer Warranty
Limited Lifetime
Series
6505
| Finish | Zinc |
|---|---|
| Drawer Length | 14", 16", 18", 20", 22", 24", 26", 28" |
