Hickory Hardware Pack Of (10) Pairs – 1-1/4 Inch Overlay Concealed Euro Cabinet Door Hinges With 108 Degree Opening Angle And Self Close Function – Total 20 Polished Nickel

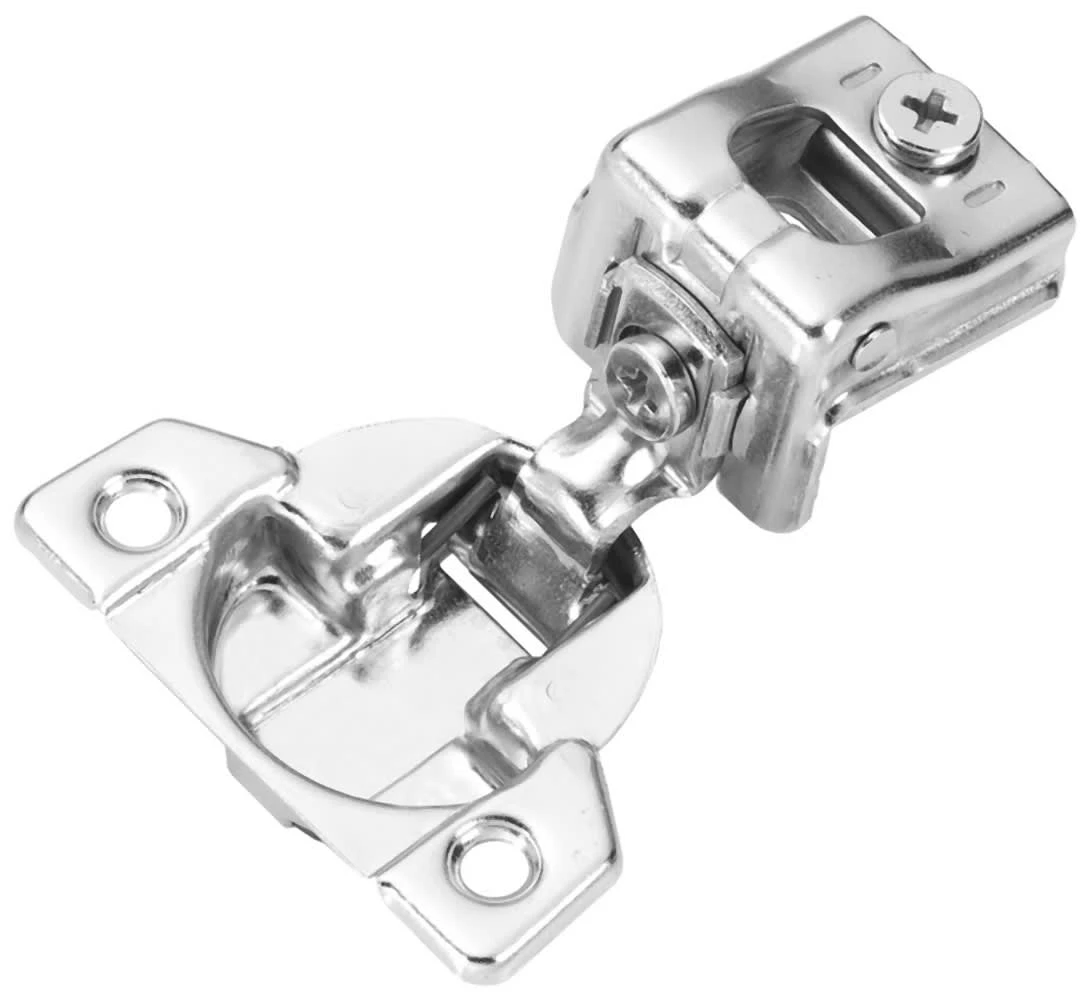

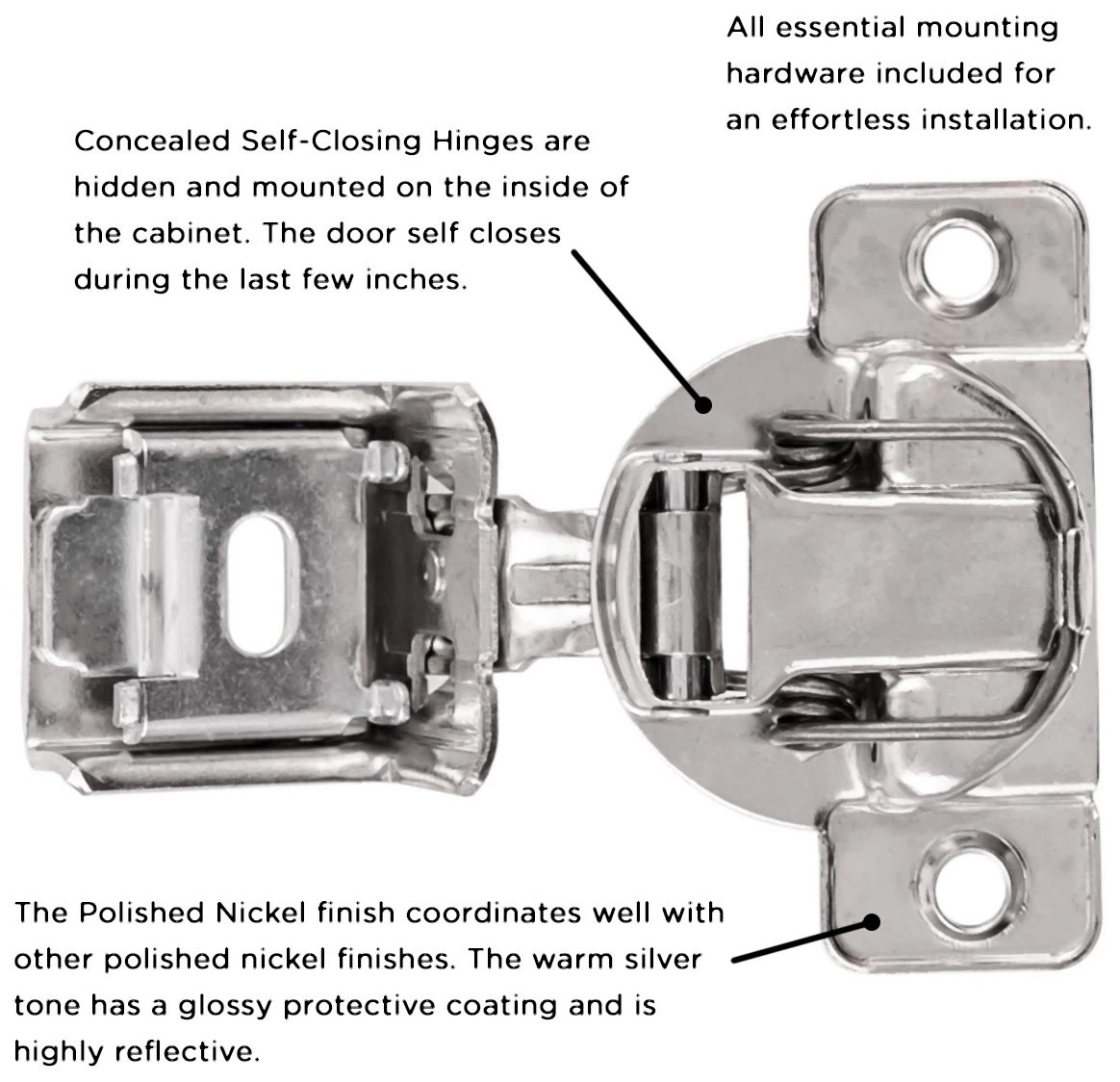

This European style concealed hinge is for face frame cabinets – a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. Features adjustment cam that automatically positions the door depth as desired without the hassle of loosening screws and manual positioning, and micro side to side adjustment. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation.

Features:

• 1-1/4 inch overlay for face frame cabinets
• Cam for depth adjustment, Micro side to side adjustment
• 108 degree opening angle
• Package of twenty (20)

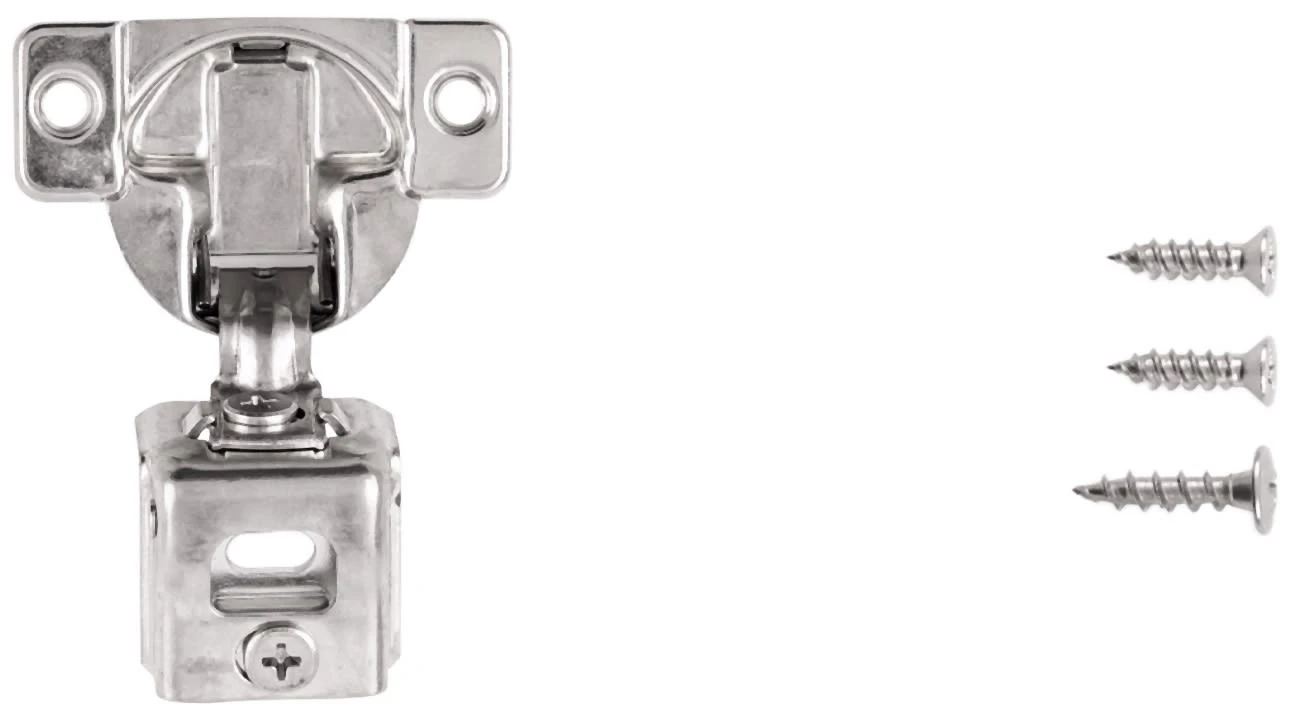

• All essential mounting hardware included for an effortless installation

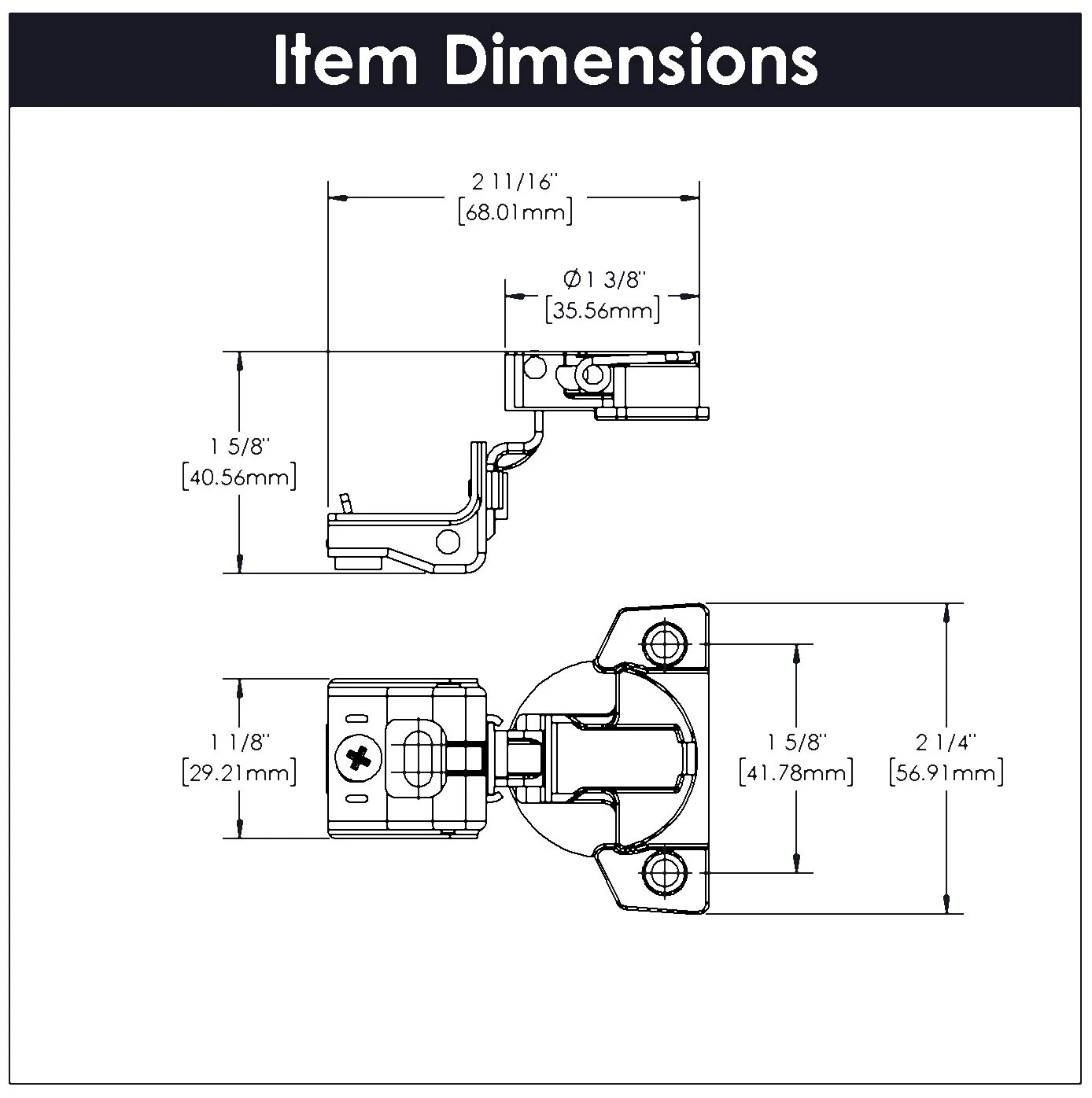

Specifications:

• Width: 2-1/4″
• Length: 2-3/4″
• Hinge Mount: Partial Overlay
• Opening Angle: 108
• Material: Steel
• Installation Type: Screws
• Cup Depth: 1/2″
• Cup Diameter: 1-3/8″
• Boring Distance: 1/4″

Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
