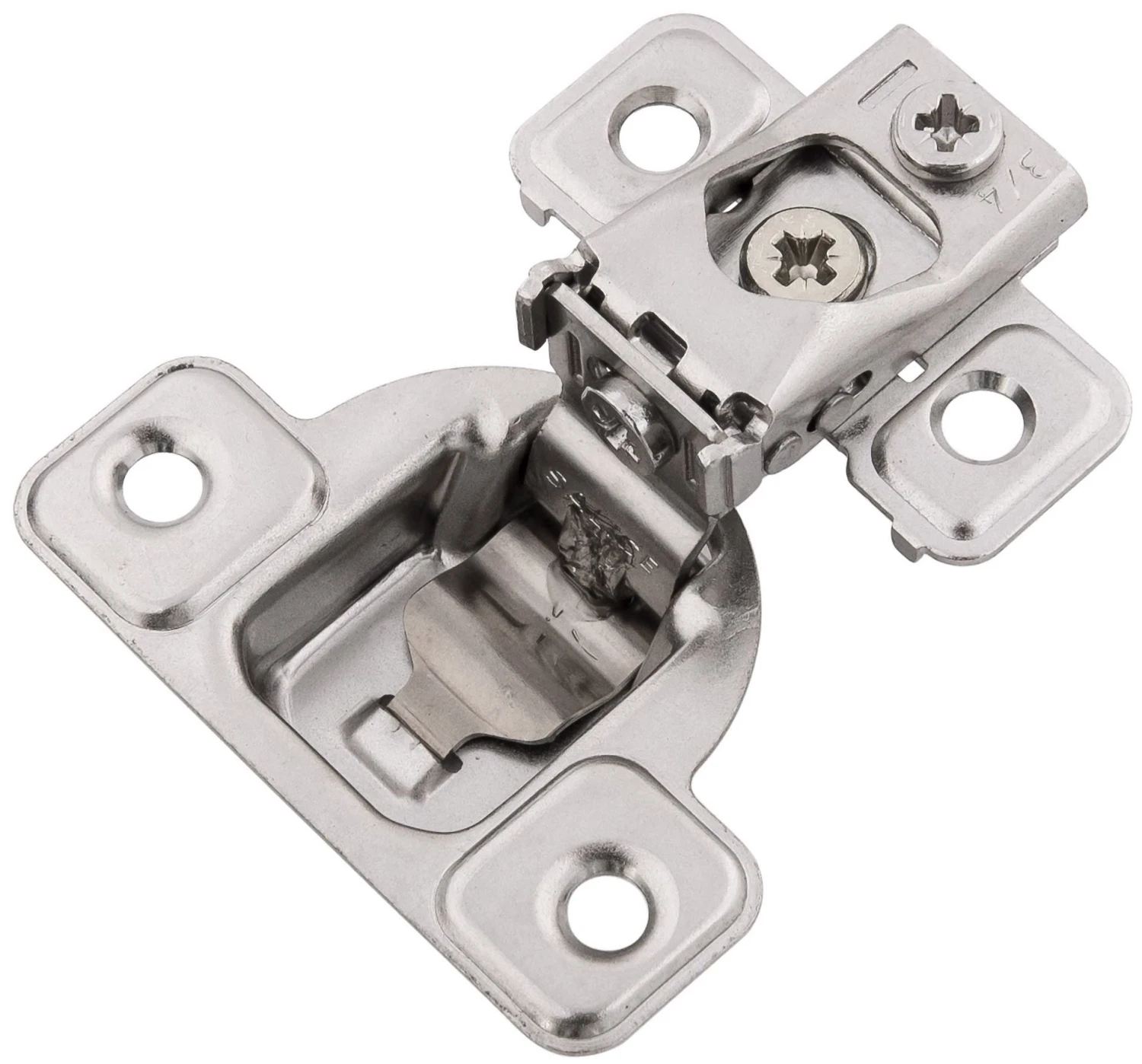

Hickory Hardware (10) Pairs – 3/4 Inch Overlay Concealed Euro Cabinet Door Hinge With 106 Degree Opening Angle And Self Close Function – Total 20 Polished Nickel

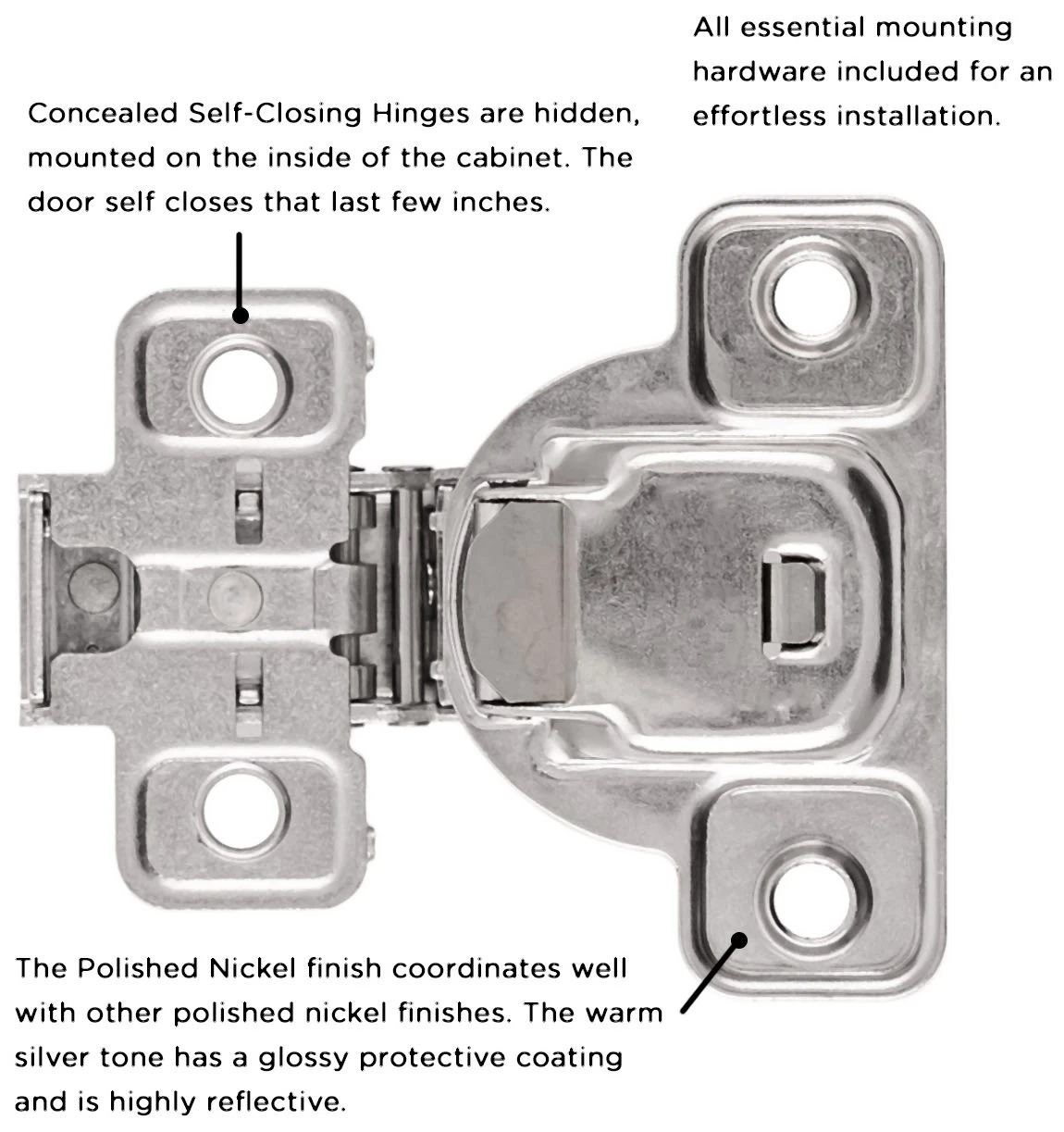

This European style concealed hinge is for face frame cabinets – a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. Features adjustment cams that automatically position the hinge as desired without the hassle of loosening screws and manual positioning. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation. Soft close version also available (model # HH74717-14) that quiets the door closing.

Features:

• 3/4 inch overlay for face frame cabinets
• 3 cams for depth, side to side, and vertical adjustment
• 106 degree opening angle
• Package of twenty (20)

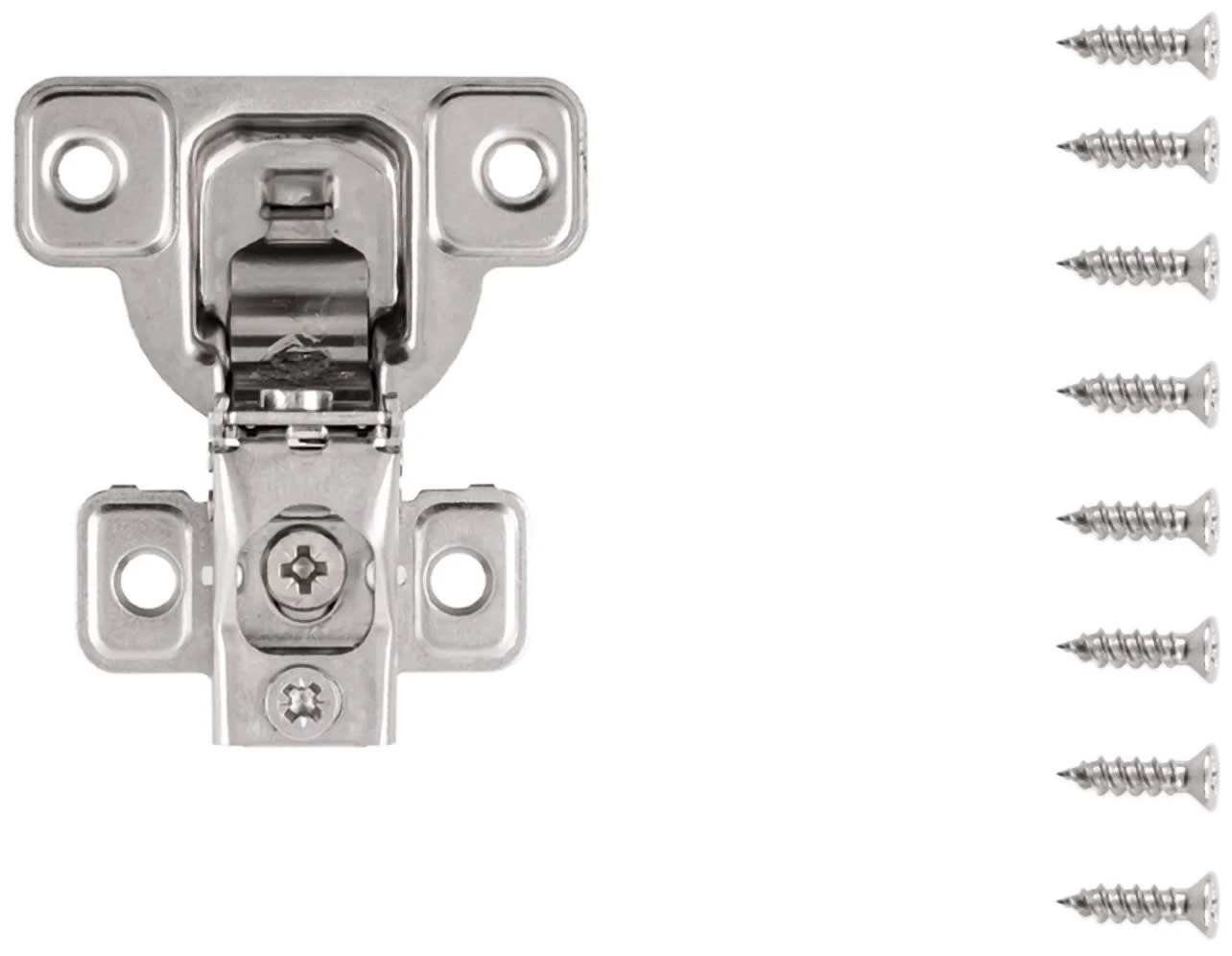

• All essential mounting hardware included for an effortless installation

Specifications:

• Width: 2-3/8″
• Length: 2-11/16″
• Hinge Mount: Partial Overlay
• Opening Angle: 106
• Material: Steel
• Installation Type: Screws
• Cup Depth: 7/16″
• Cup Diameter: 1-3/8″
• Boring Distance: 1/4″

Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
