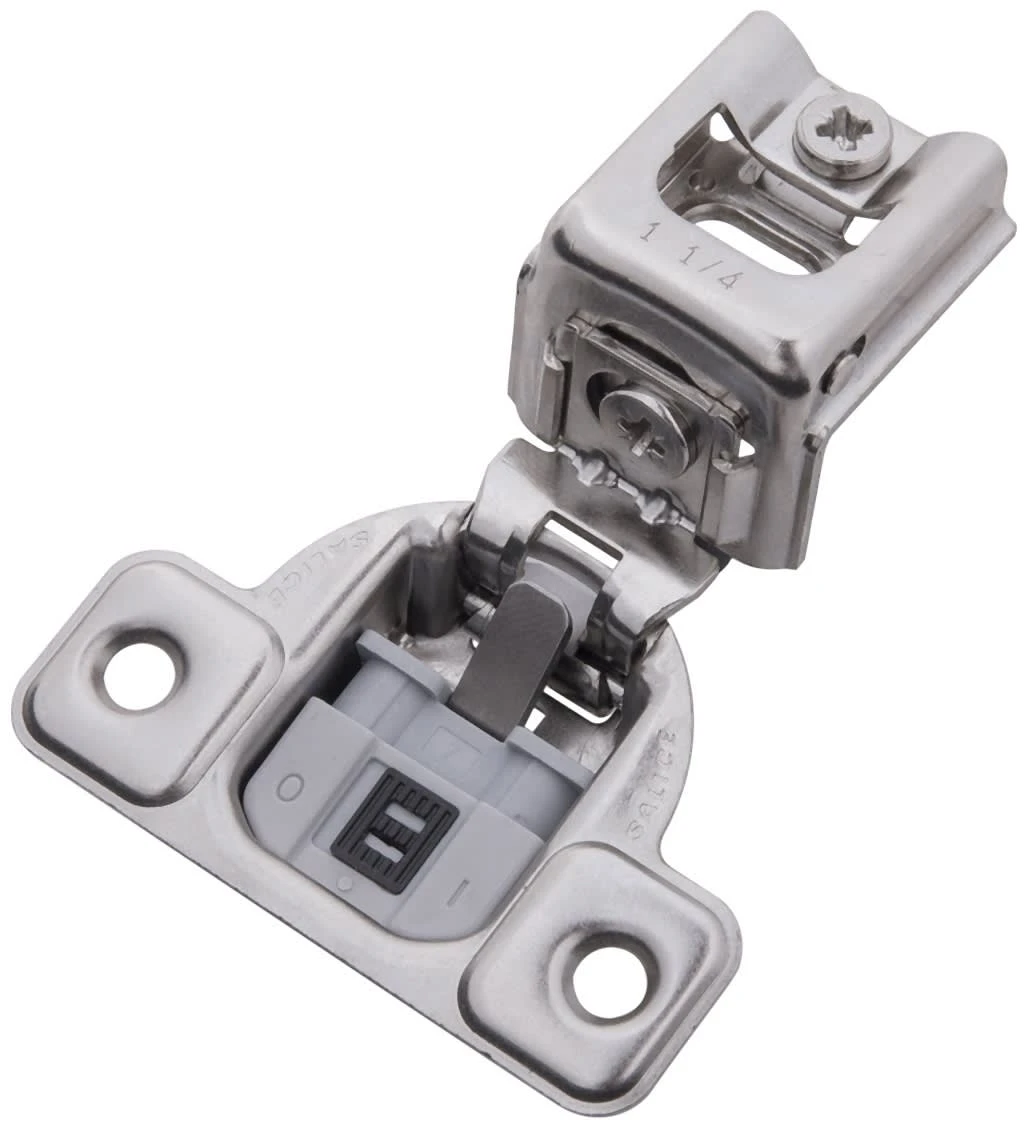

Hickory Hardware (10) Pairs – 1-1/4 Inch Overlay Concealed Euro Cabinet Door Hinge With 106 Degree Opening Angle And Self Close Function – Total 20 Polished Nickel

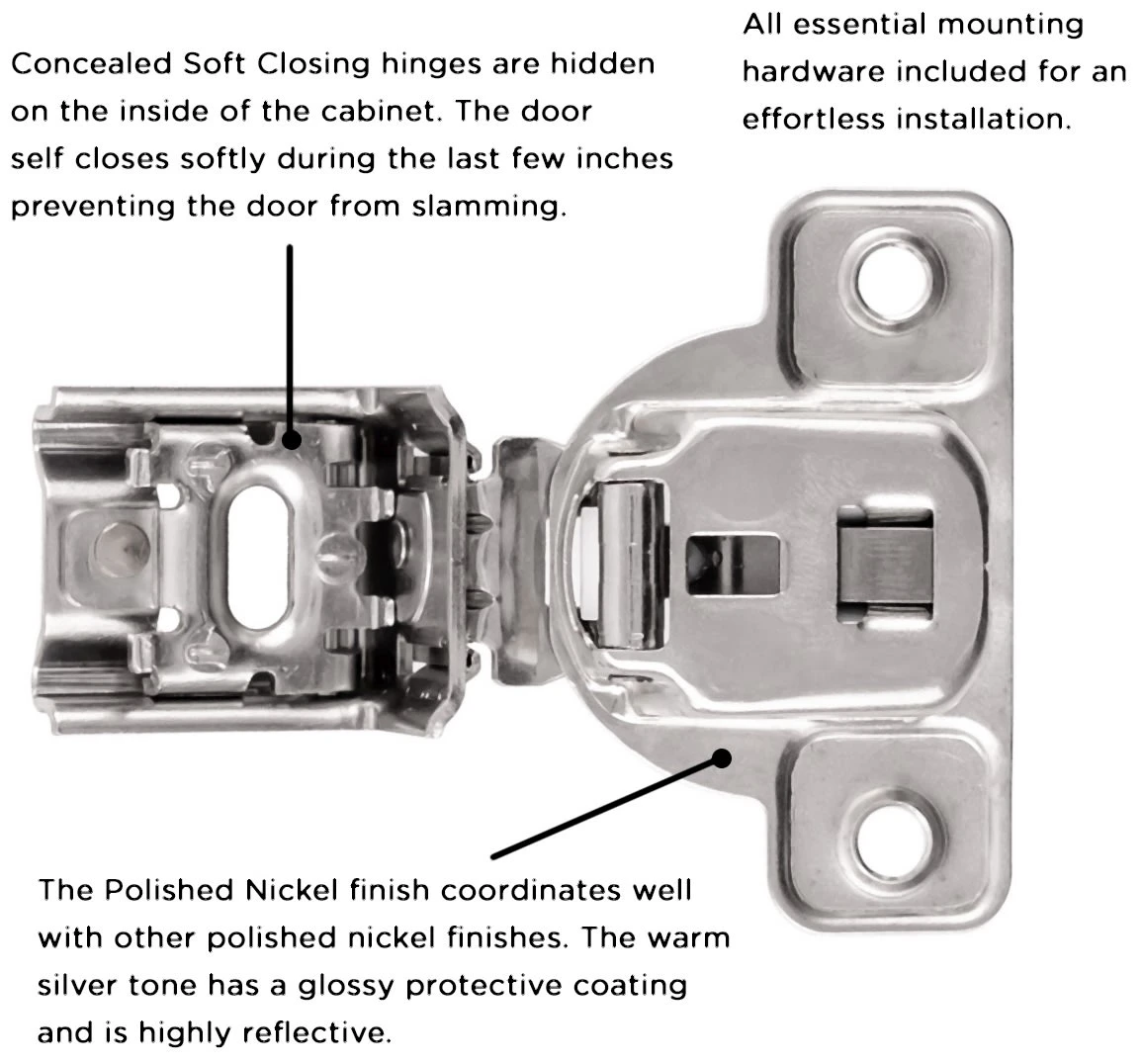

This European style concealed hinge is for face frame cabinets and rich in functionality and adjustability – a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. Features adjustment cams that automatically position the hinge as desired without the hassle of loosening screws and manual positioning. No more slammed doors – this soft close model acts like a self-closing hinge and pulls the door closed for the last few inches of travel and keeps it shut, but the soft close mechanism dampens the door closing for smooth and quiet operation. You can even adjust the door closing speed to suit your preference. Mounting hardware and instructions included for DIY friendly installation.

Features:

• 1-1/4 inch overlay for face frame cabinets
• Adjustable soft close
• 2 cams for depth and side to side adjustment
• 106 degree opening angle
• Package of twenty (20)
• All essential mounting hardware included for an effortless installation

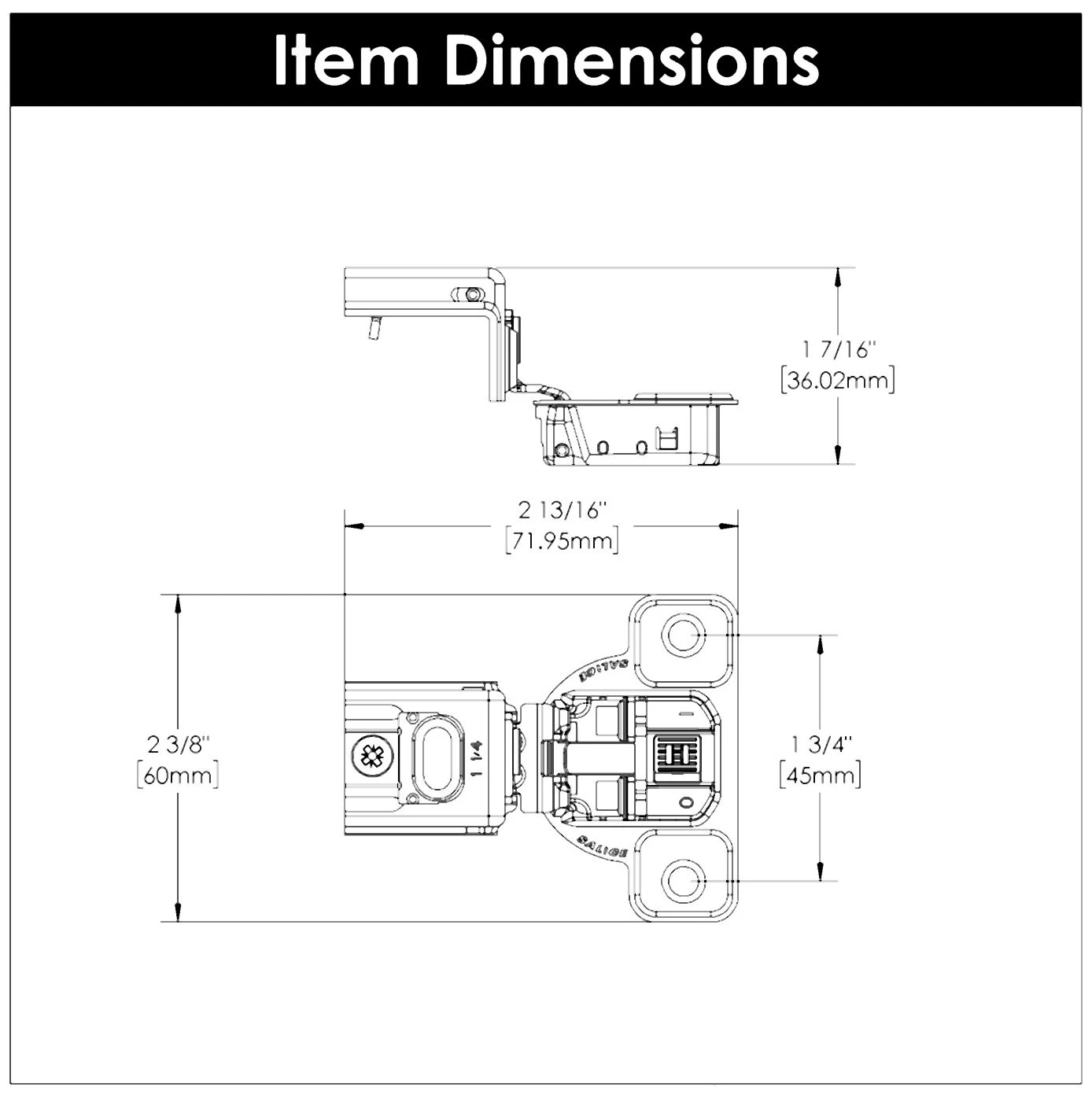

Specifications:

• Width: 2-3/8″
• Length: 3″
• Hinge Mount: Partial Overlay
• Opening Angle: 106
• Material: Plastic, Steel
• Installation Type: Screws
• Cup Depth: 1/2″
• Cup Diameter: 1-3/8″
• Boring Distance: 1/4″

Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
