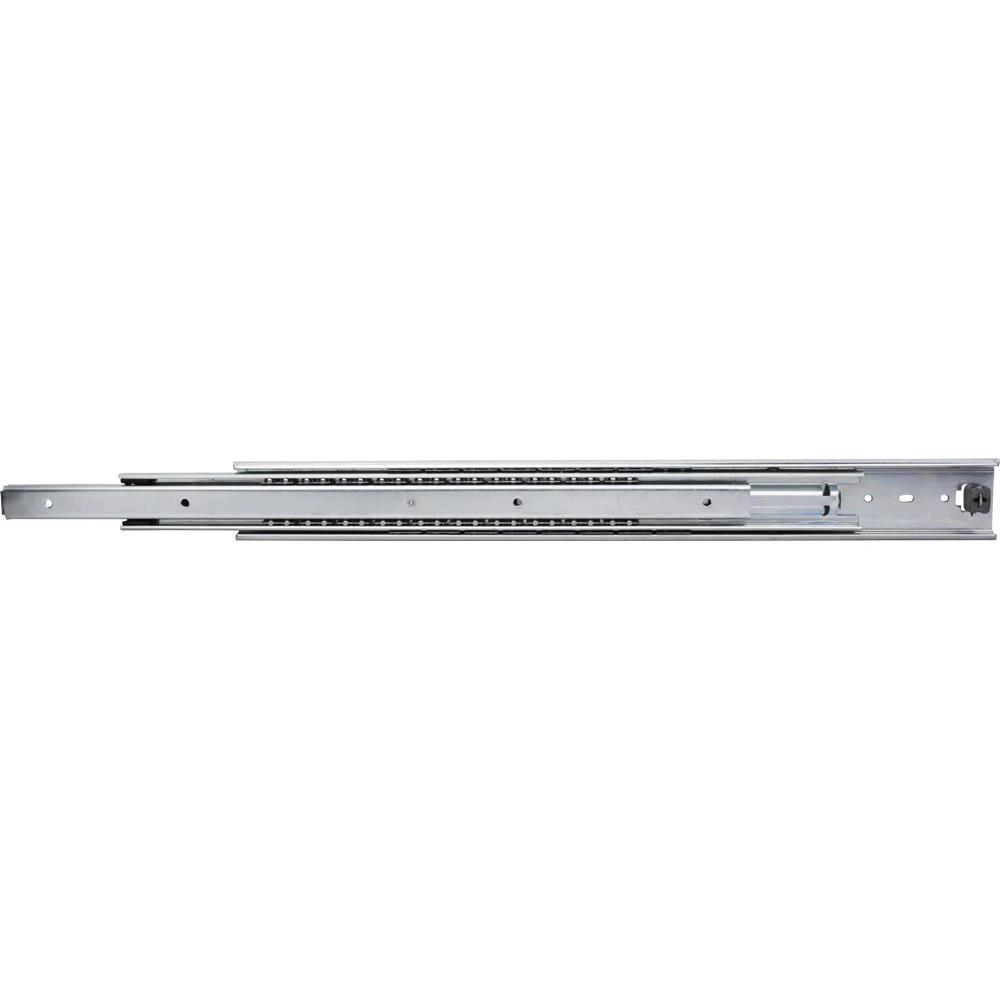

Hardware Resources 209FU – PAIR Of 26″ 225 Lb Extra Heavy Duty Full Extension Side Mount Ball Bearing Slides With 1″ Overtravel Zinc

Features:

• Drawer slides are grade 1 ANSI/BHMA certified with 225 lb dynamic weight rating
• Mounts to the side of the drawer for stability and strength
• Provides easy access to drawer with 1″ over travel slides
• Non-handed trigger disconnect allows easy and quick removal of the drawer from the cabinet
• Synthetic rubber hold-in detent prevents bounce back and roll out
• Lubricated steel ball bearings
• All Hardware Resources cabinet hardware comes with a limited lifetime warranty
• Complete pair

Product Technologies:

• Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.

Specifications:

• Drawer Length: 26″
• Slide Length: 26″
• Extension Type: Full Extension
• Slide Type: Ball Bearing
• Weight Capacity: 225 lbs
• Minimum Cabinet Depth: 26″
• Material: Steel
• Quantity: 2
• Quantity: 1

Product Variations:

• 209FU16: 16 Inch Over travel Drawer Slides
• 209FU18: 18 Inch Over travel Drawer Slides
• 209FU20: 20 Inch Over travel Drawer Slides
• 209FU22: 22 Inch Over travel Drawer Slides
• 209FU24: 24 Inch Over travel Drawer Slides
• 209FU26 (This Model): 26 Inch Over travel Drawer Slides
• 209FU28: 28 Inch Over travel Drawer Slides
• 209FU30: 30 Inch Over travel Drawer Slides

Elements: guides, drawer slides, drawer guides, drawer glides, ball bearing slides, commercial drawer slides, commercial drawer guides
