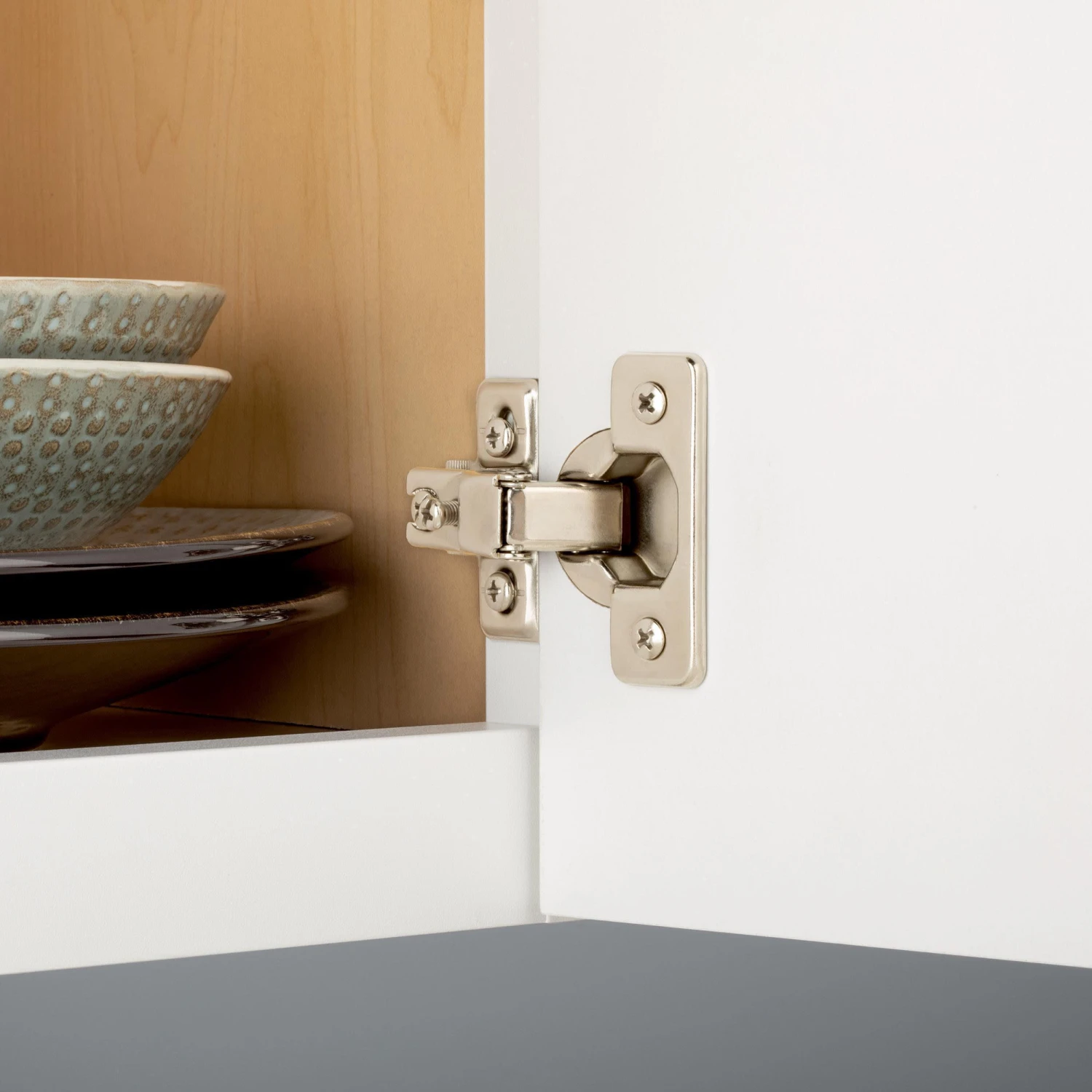

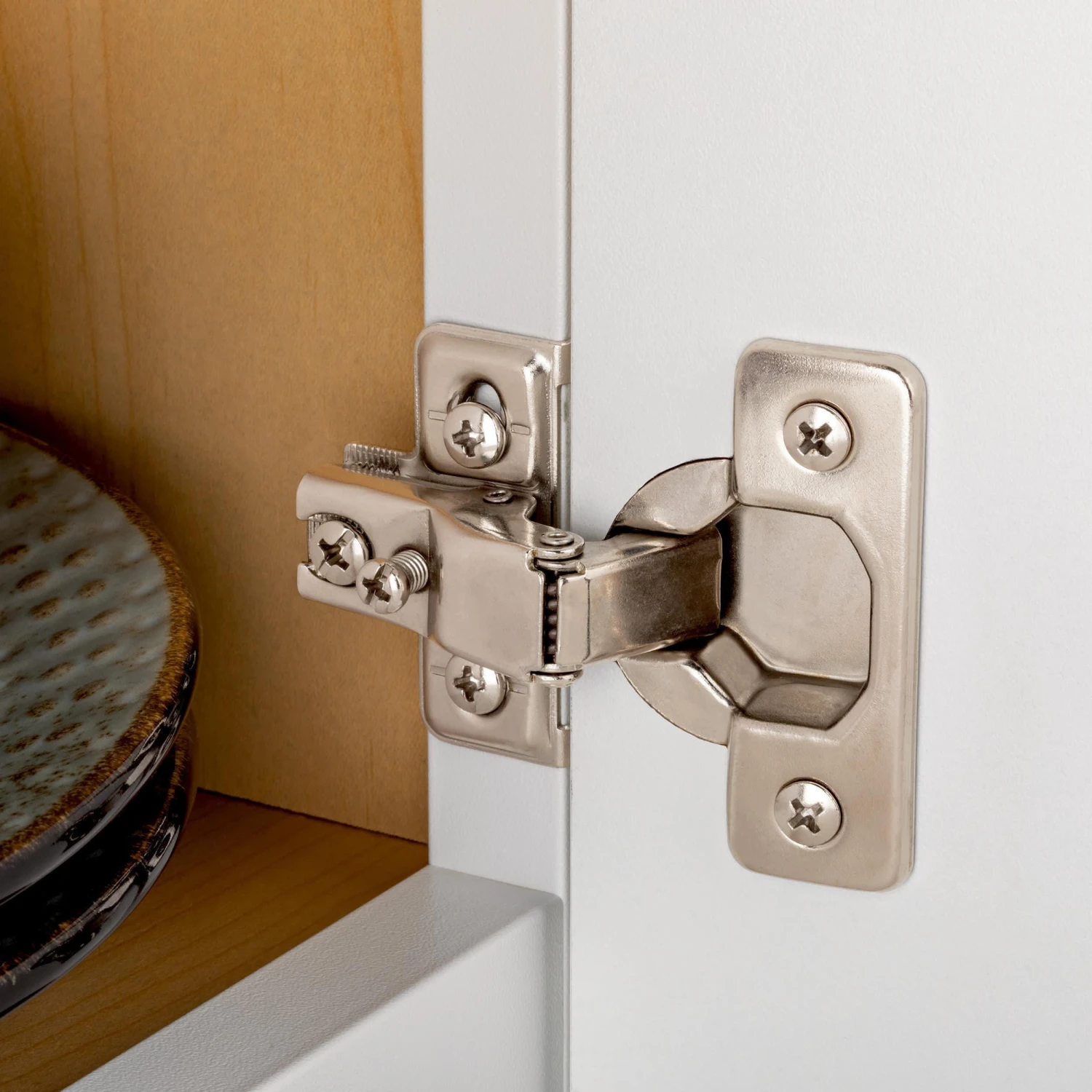

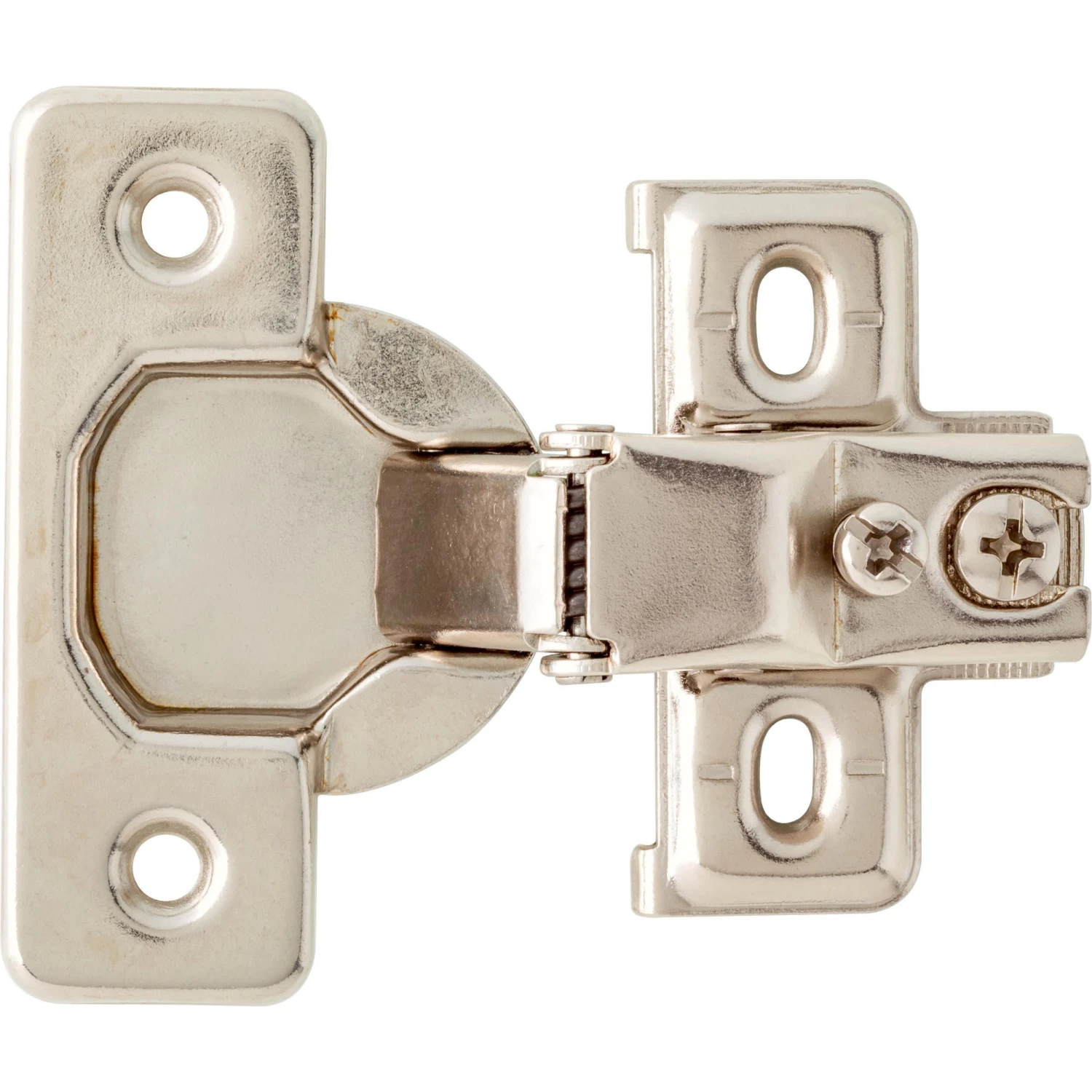

Franklin Brass 5/8 Inch Overlay Concealed Euro Cabinet Door Hinge With 100 Degree Opening Angle – Pack Of 10 Nickel Plated
Original price was: $41.30.$28.91Current price is: $28.91.
- Multiple payment methods, 100% payment security
- Enjoy top quality items for less
- Top Quality Products
- Safe Payments for a Better Shopping Experience
The Franklin Brass 5/8 inch Overlay Hinge offers a 100 degree opening for practical function. Made from steel to stand up to everyday use and protected by a limited lifetime warranty. Includes 5 pairs of hinges and installation hardware to make your project affordable and easy.
Features:

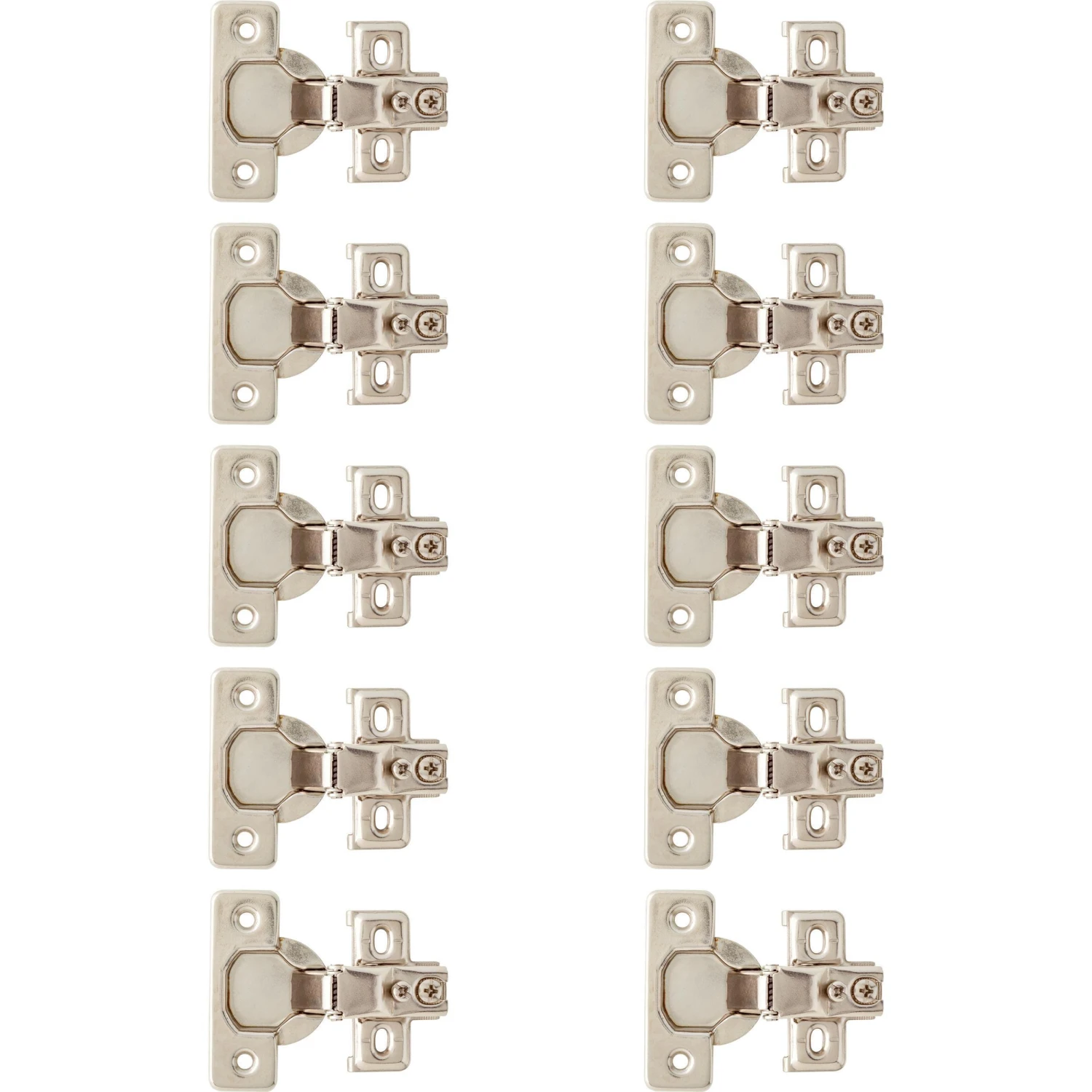

- Includes (10) hinges – (5 pairs) in each order
- Constructed of high quality steel for durability and dependability
- Covered by Franklin Brass’s limited lifetime manufacturer warranty
- Designed for a 100 degree opening angle
Specifications:
- Hinge Mount: Partial Overlay
- Opening Angle: 100
- Material: Steel
- Installation Type: Screws
- Cup Diameter: 1-3/8″
- Bore Distance: 7/8″
- Cup Depth: 3/8″
- Mount Centers: 3/4″
Dimensions and Measurements
Boring Distance
0.88 mm
Cup Depth
0.38 in.
Cup Depth mm
12 mm
Cup Diameter
1.38 in.
Cup Diameter mm
35 mm
Max Cabinet Door Thickness
0.62 in.
Mount Centers
0.75 in.
Mount Centers mm
519 mm
Opening Angle
100
Overlay
5/8 Inch
Product Weight
0.12 lbs.
Quantity
10
Characteristics and Features
3-Way Adjustable
No
Adjustable Depth
No
Adjustable Height
No
Adjustable Side to Side
No
Arm Type
Half Cranked
Bulk Pack
Yes
Cabinet Type
Face Frame
Demountable
No
Hinge Mount
Partial Overlay
Hinge Type
Concealed Euro
Installation Type
Screw
Material
Steel
Self Closing
No
Soft Close
No
Warranty and Product Information
Manufacturer Warranty
Limited Lifetime
| Finish | Nickel Plated |
|---|
