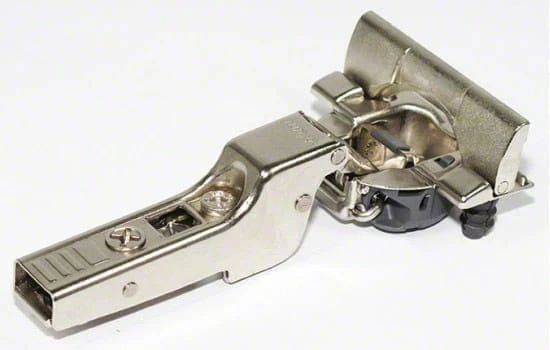

Blum BLUMOTION Partial Overlay INSERTA Cabinet Door Hinges With 110-Degree Opening Angle – 10 Pack Nickel

Features:

• Includes (10) hinges in each order
• Constructed of high quality steel for durability and dependability
• Covered by Blum’s limited lifetime manufacturer warranty
• Soft close function ensures your cabinet door will close quietly
• 2-way adjustable hinge for easy and customizable installation
• Designed for a 110 degree opening angle
• Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
• All necessary mounting hardware is included

Specifications:

• Hinge Mount: Partial Overlay
• Opening Angle: 110
• Material: Steel
• Installation Type: Clip On
• Cup Diameter: 1-3/8″
• Bore Distance Min/Max: 3″, 7″
• Cup Depth: 1/2″
• Mount Centers: 1-3/4″

Product Technologies:

• Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.

• Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.

• BLUMOTION: BLUMOTION is the soft close system from Blum. Whether large or small, heavy or light, BLUMOTION soft closing action keeps doors and drawers from slamming closed. It adapts to various closing speeds and features overload safety which protects the system from damage through use.

• Mounting Type – INSERTA™: Blum’s unique INSERTA™ system simplifies installation by using specialized expanding dowels with a push down lever and pre-drilled holes. Once the dowel have been inserted into the holes, just push down the lever to cause the dowels to expand and create a secure fitting. No tools needed once the holes have been drilled.
